Mã phụ tùng:
3755821
Giá:
Liên hệ
Giá EXW:
28.71 EUR
Xuất xứ:
Italy
Giao hàng dự kiến:
2 - 4 tuần

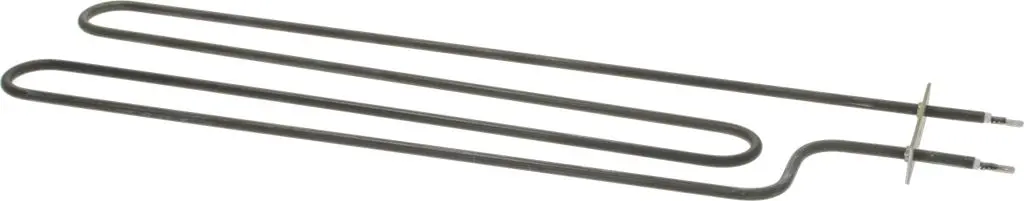

| Manufacturer | Part number |
|---|---|
| GEV | 629052, 416018 |
| Power | 1000 W |
| Voltage | 230 V |
| Length | 515 mm |
| Length 1 | 55 mm |
| Length 2 | 460 mm |
| Width 1 | 65 mm |
| Width 2 | 60 mm |
| Mounting | rectangular flange |
| Connection | male faston 6.3mm |
| Tube diameter | 6,5 mm |
| Heating circuits | 1 |
| Width | 125 mm |
| Flange length | 80 mm |
| Flange width | 20 mm |
| Connection length | 50 mm |
| Application | dry heating element |
| Weight | 0,320 kg |
FITS MODELS
| Manufacturer | Device type | Model |
| FAGOR | Electric oven | HE9-10 (201010-), HE9-20 (201010-) |
| FAGOR | Kitchen | CG-210G (200811-), CG-210G (200910-), CG-310G (200811-), CG-310G (200910-), C-GE741 (202003-), C-GE941 (201703-) |
| FAGOR | Kitchen electric | CGE7-41 (200805-), CGE7-41H (200805-), CGE9-11 (200906-), CGE9-41 (200701-), CGE9-41 (200906-), C-GE941 (201903-), CGE9-41AD (201110-), CGE9-41PLUS (201110-) |
| FAGOR | Oven under cooktop gas | CE7-41 (200805-), C-E741 (202003-), CE7-41Q (201001-), C-E741Q (202003-), C-E761 (202003-), CE9-41 (200701-), CE9-41 (200906-), C-E941 (201803-), C-E941 (201902-), C-E941-220V-1N (201703-), C-E941-220V-3phase (201703-), C-E941-380-415V-3N (201703-), C-E941-440V-3phase (201703-), CE9-41AD (201110-), CE9-41PLUS (201110-), C-E961 (201803-), C-E961 (201902-), C-E961OP (201803-), C-E961OP (201902-) |
| FAGOR | Solid top range | C-E711 (202006-), C-E911 (201902-) |
